A 7-inch monitor with up to four magnetic-mount cameras that talk to the screen over 2.4G. No drilling, no cable run down the length of a trailer, and a stable link out to roughly 100 metres in the open.
Model HP-U1
Wiring a camera the length of an articulated trailer or a piece of plant is the part that turns a quick fit into a half-day job. This system skips it. The cameras mount on a magnet, pair to the 7-inch monitor over a 2.4G link with dual antennas, and hold the connection out to around 100 metres in open ground. A driver moving a camera between a trailer and a tractor does it in seconds.

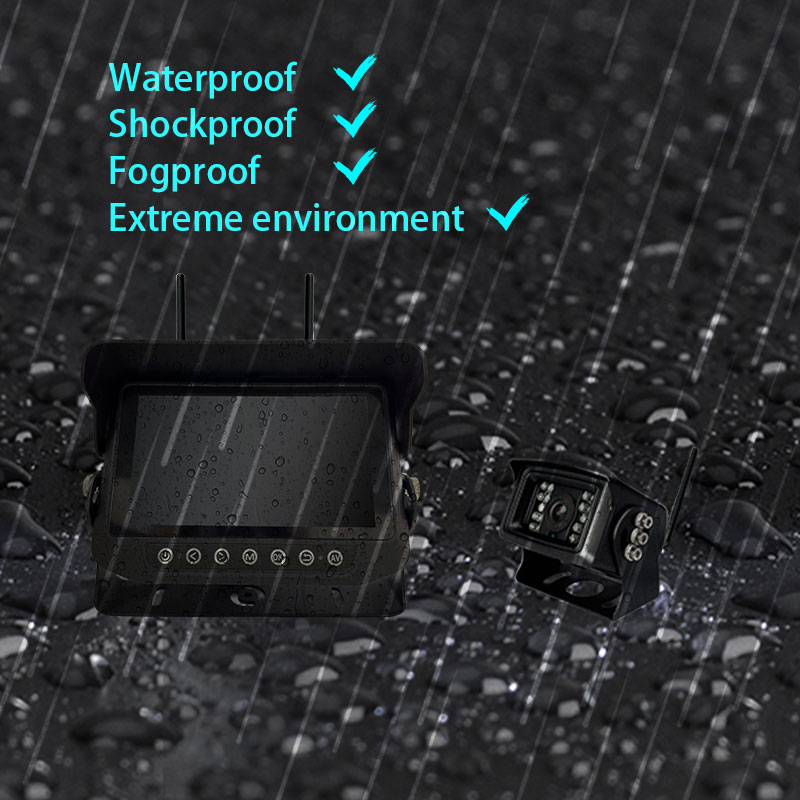

The monitor is a sealed metal IP67 unit, the cameras are IP68 and shock-rated, so the set survives rain, wash-down and the knocks of a yard. Infrared night vision keeps a usable picture after dark, and the screen runs four channels at once in a split view for a vehicle that needs eyes on more than one side.
The magnetic mount and 2.4G pairing mean no holes, no loom and no trip to a fitter for a temporary job. It suits a hire fleet, a swapped trailer, or a forklift that needs a rear view today, and it comes off as cleanly as it went on.

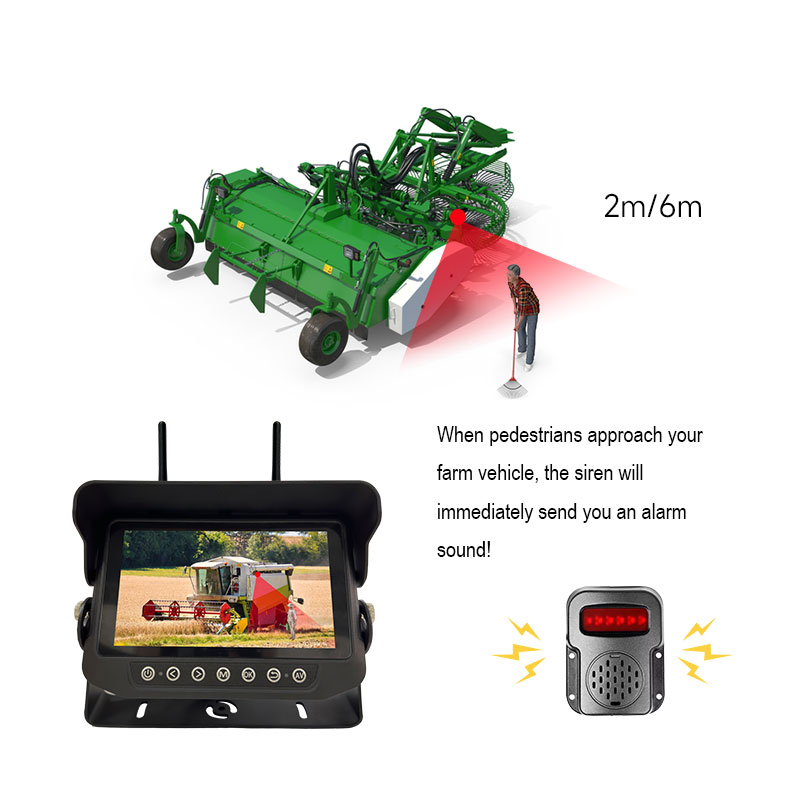

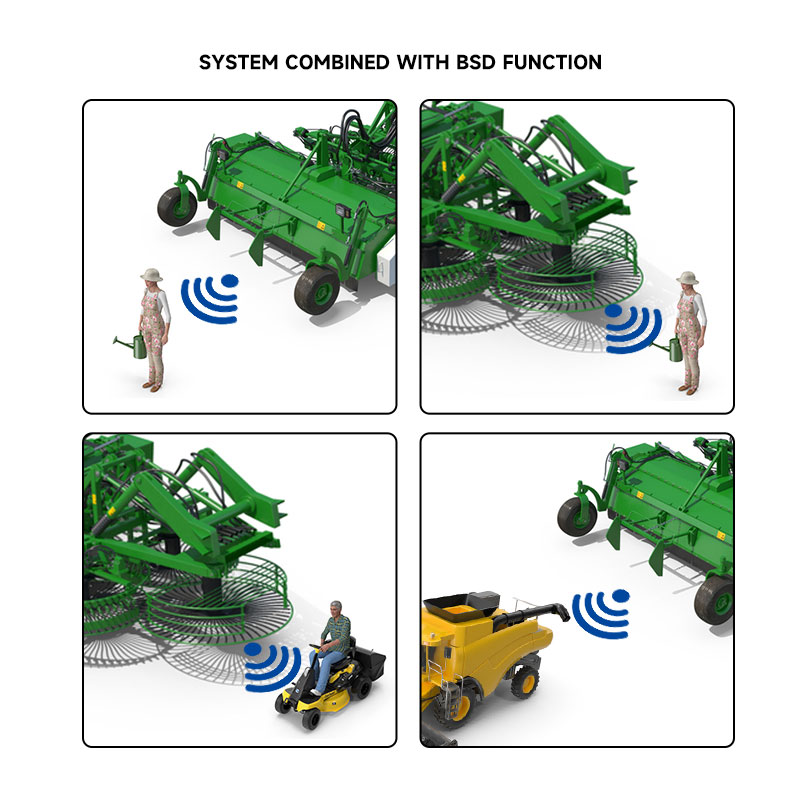

Built-in detection watches for people and vehicles entering the danger area and raises the alarm on the screen, through the speaker, and on an external sound-and-light output. It is the layer that catches what the driver misses while looking the other way.

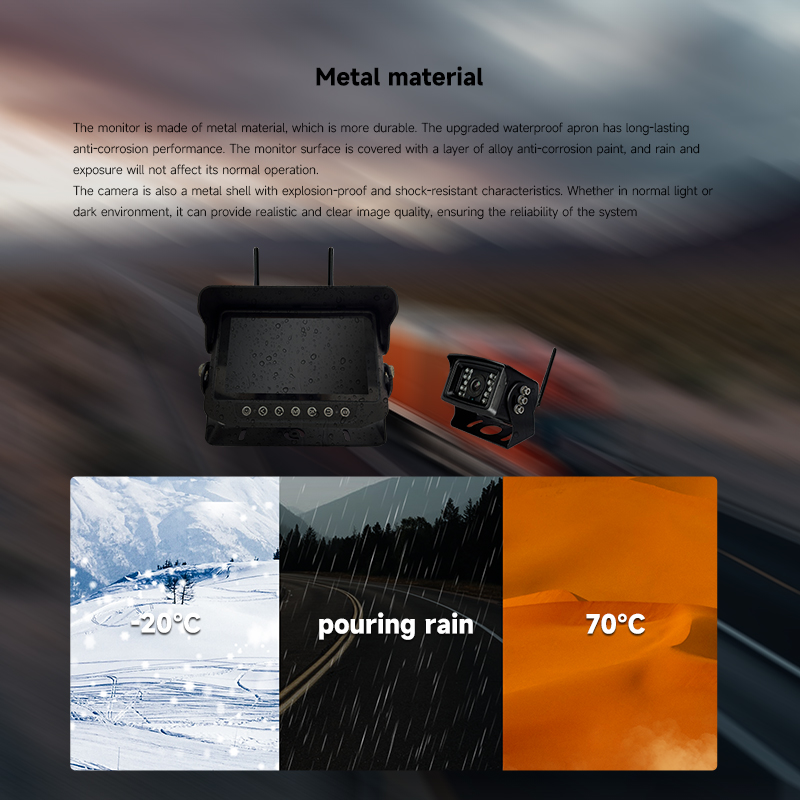

The cameras sit in shockproof aluminium rated to 10G, the monitor is sealed metal, and both run from 9 to 36V across a working range of -20 to +70°C. Mud, dust and a pressure wash are part of the design brief, not an edge case.
| Channels | 4 (quad split view) |
| Link | 2.4G wireless, dual antenna, ~100 m open range |
| Display | 7″ IPS, 1024×600, 500 cd/m2 |
| Camera sensor | 1/2.9″ GC2053, 2.8 mm lens |
| Image | auto exposure, white balance, 2D/3D NR, WDR |
| Night vision | infrared |
| AI alarm | people / vehicle, screen + voice + external I/O |
| Storage | Micro SD Class10 U1, up to 512GB |
| Waterproof | monitor IP67, camera IP68 |
| Shock rating | 10G |
| Power | 9-36V DC |
| Working temp. | -20°C to +70°C |
| Monitor size | 205 x 158.7 x 85 mm, 1050 g |
| System | Linux, button operation, NTSC/PAL |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 12 months |
Anywhere a cable run is the problem: hire fleets, swapped trailers, plant and machinery, and vehicles that need a rear view fitted today.
Tell us the vehicle type and how many units, and we will come back with a camera layout, pricing and OEM/ODM options.
