Six channels split for safety: six AHD cameras, a forward ADAS layer, five-zone blind-spot detection and a sound-and-light alarm, all on one 10.1-inch touch screen. The monitoring system with the active warnings built in.
Model HP-A10
Where a plain monitor just shows the cameras, this unit acts on them. Its six channels are split for the job: six AHD camera images, one running a forward ADAS layer, five feeding blind-spot detection, and one driving a sound-and-light alarm. The result is a 10.1-inch touch system that does not just record the danger, it calls it out.
ADAS watches the road ahead for lane departure, a closing collision and pedestrians, and announces them by voice. The five-zone BSD covers the mirror blind spots and warns the driver as something moves into them. Underneath, six starlight cameras record in colour through the night to a card up to 256GB, with parking guidelines and a reverse view when the vehicle backs up.

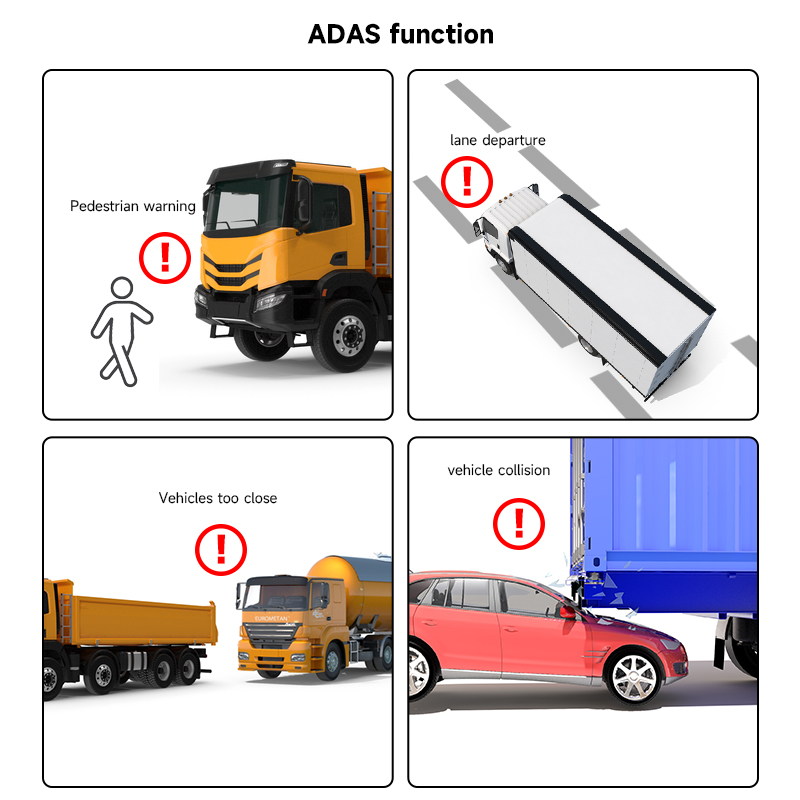

The forward layer reads the road for lane drift, a closing distance that precedes a collision, and pedestrians ahead, and it warns the driver by voice rather than a flash that gets missed. It even flags a vehicle starting ahead at the lights, the small prompt that keeps traffic moving.

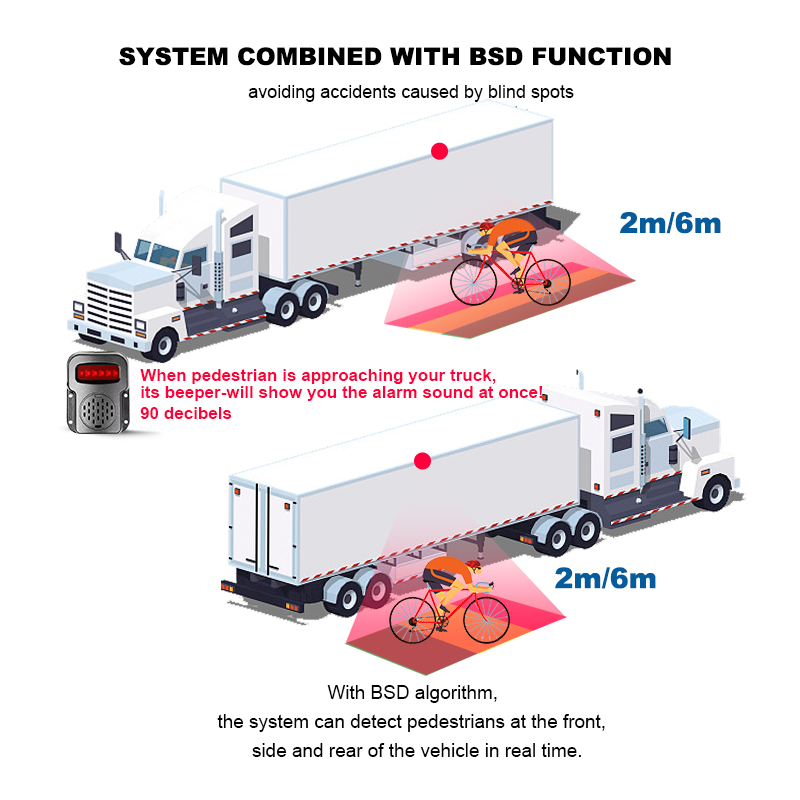

The BSD algorithm watches five zones around the mirrors and the body, and alerts the driver the moment a vehicle or a person moves into one. With a dedicated sound-and-light alarm channel, the warning reaches both the cab and, where the lamp is mounted, the people outside.
Starlight sensors keep a colour image where older cameras drop to grey, and the IP68 metal housings take the weather and the knocks. All six channels loop to a card up to 256GB, and WiFi, GPS, app control and voice round it out for a connected fleet.
| Channels | 6 AHD + 1 ADAS + 5 BSD + 1 alarm |

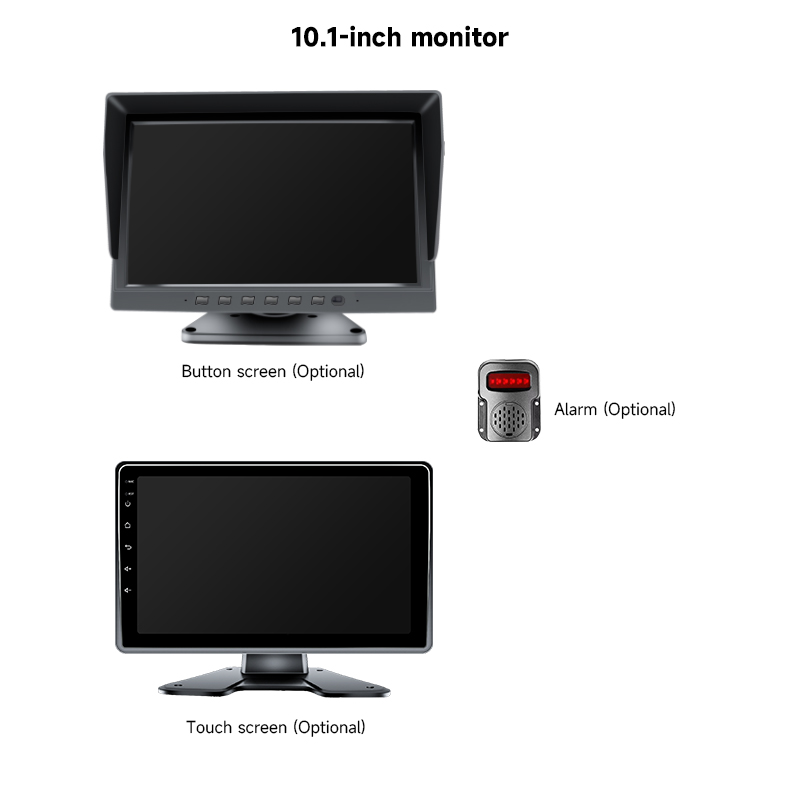

| Display | 10.1″ IPS touch, 1024×600, 400 cd/m2 |
| Camera | 1080P AHD starlight, colour night, 90-120° |
| ADAS | lane, collision, pedestrian, vehicle-start (voice) |
| BSD | 5-zone mirror blind-spot |
| Alarm | dedicated sound + light channel |
| Video | H.264, loop recording |
| Storage | TF card up to 256GB Class10 U1 |
| Connectivity | WiFi, GPS, app control, voice |
| Waterproof | IP68 metal cameras |
| Power | 9-36V (12-24V optimal) |
| Working temp. | -20°C to +65°C |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 1 year |
Where the warning has to fire on its own: trucks, buses, coaches and heavy vehicles working among traffic and people.
Tell us the vehicle type and how many units, and we will come back with a camera layout, pricing and OEM/ODM options.
