Five 1080P channels on one 10.1-inch screen, one more than the usual four. The extra feed covers the view a long or multi-section vehicle leaves out, recorded and displayed together.
Model A6-Y

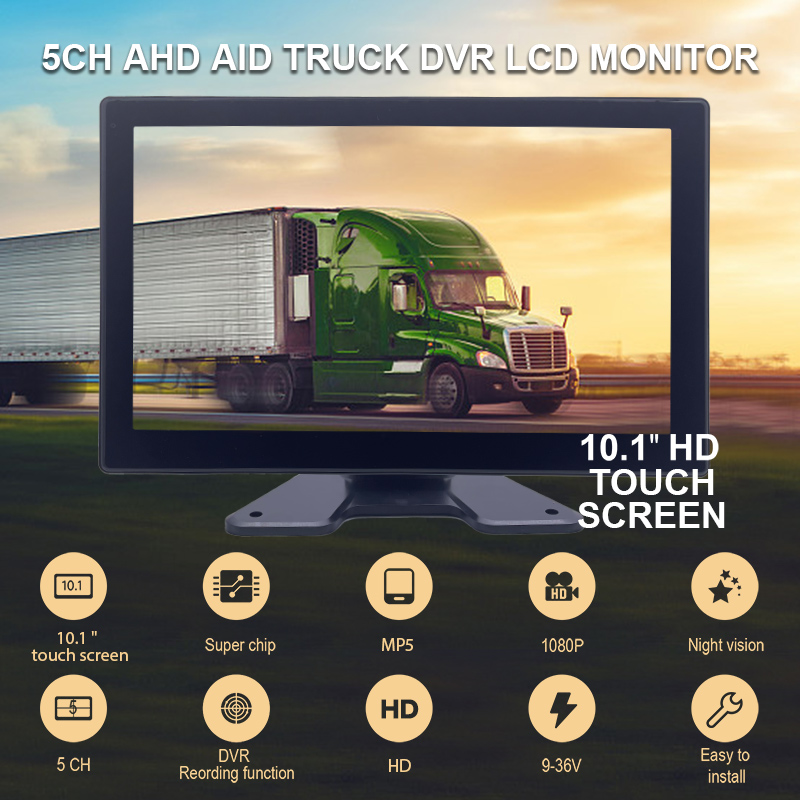

Most camera kits stop at four channels, which works until a vehicle has more sides than that to watch: a long trailer, a tipper with a working rear, a bus with a separate door view. The A6-Y carries five 1080P channels and shows them all on the 10.1-inch screen at once, with the fifth feed giving the angle a four-camera set has to leave out.
It mounts as a rearview-mirror unit, on the dash, or overhead, and the camera cable lengths are made to order so a long body does not run short. The menu runs in ten languages, the cameras are IP68 aluminium for the weather, and a USB port adds MP5 playback for the downtime.

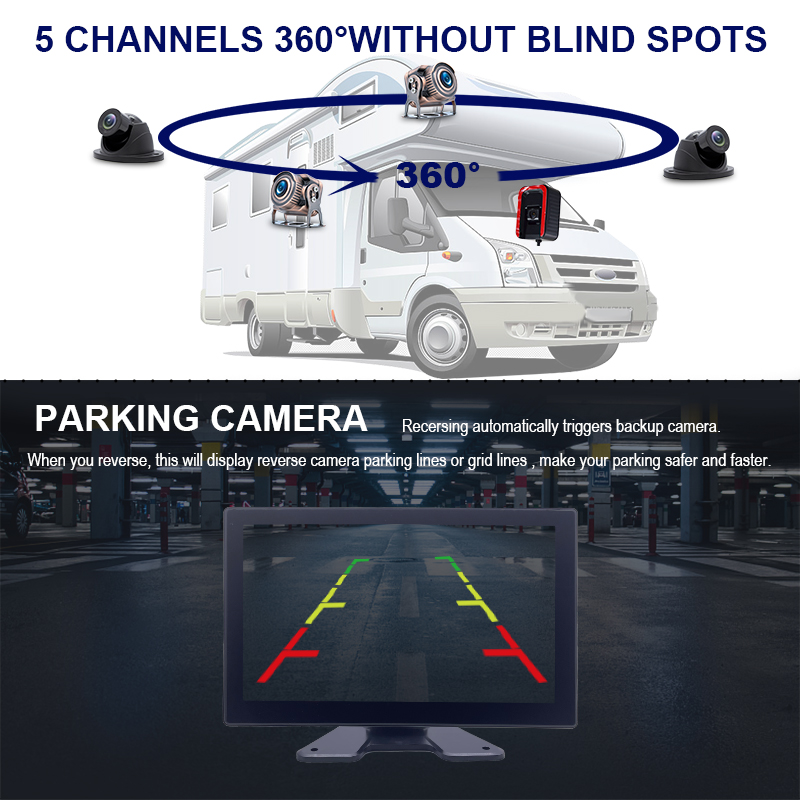

On a long or multi-section vehicle the gap a four-camera kit leaves is real, and it is usually the one that matters at a tight turn or a loading dock. The fifth channel fills it, and all five record and display together so nothing is a guess.
Camera leads are cut to the length the vehicle needs rather than a fixed run, so a camera at the back of a long trailer reaches the screen without a join. Mount the monitor on the mirror, the dash or the roof, whichever the cab allows.

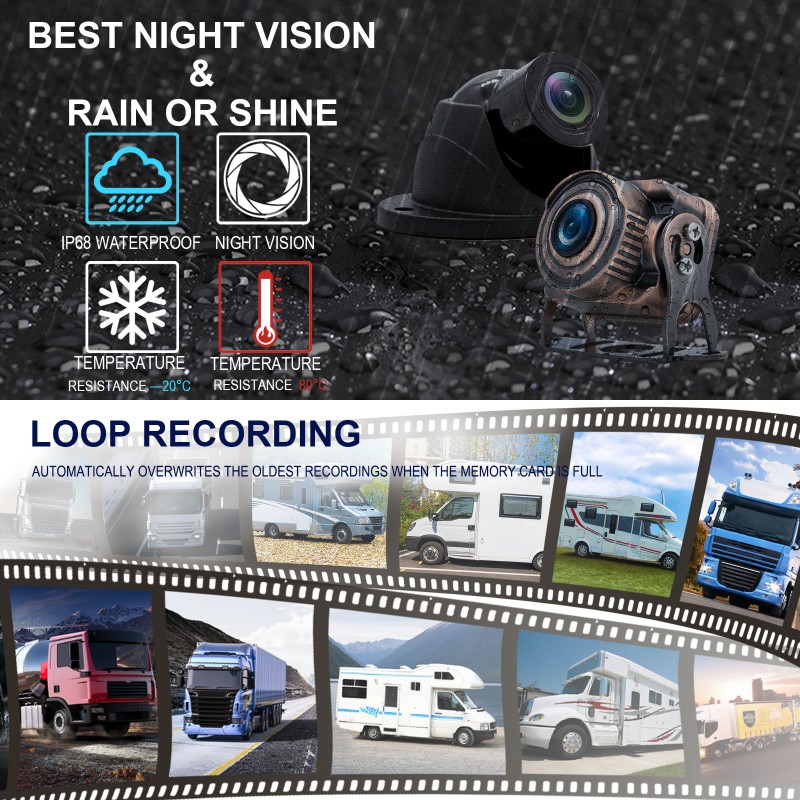

The cameras are IP68 aluminium rated for rain, snow and a temperature swing, and the interface runs in ten languages, which matters for a fleet with drivers from different places or a unit headed for export. A 400 cd/m2 screen stays readable in daylight.
| Channels | 5 (AHD) |

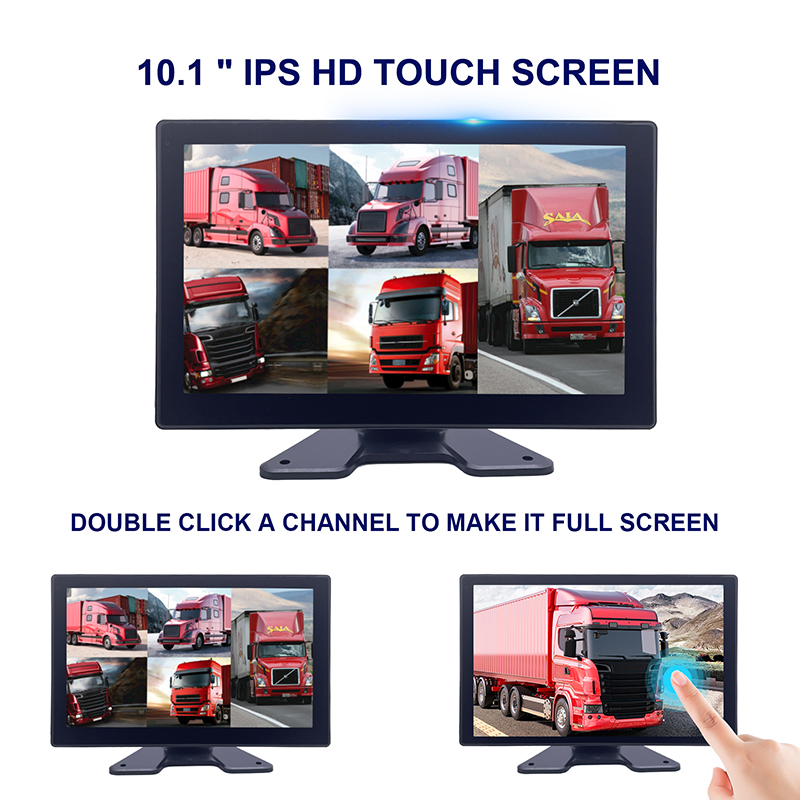

| Display | 10.1″ 2.5D IPS touch, 1024×600, 400 cd/m2 |
| Camera | 1080P, 360 view heavy-duty, 90-120° |
| Video | H.264, loop recording |
| Cabling | custom lengths, 5x 4-pin |
| Storage | TF card up to 256GB |
| Waterproof | IP68 aluminium cameras |
| Languages | 10 (EN, CN, KR, JP, RU, FR, ES, DE, IT, PT) |
| Media | MP5 via USB |
| Mounting | mirror, dash or overhead |
| Power | 9-36V |
| Working temp. | -20°C to +65°C |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 12 months |
Where four views are not enough: long trailers, tippers, buses, RVs and vans that need a fifth angle.
Tell us the vehicle type and how many units, and we will come back with a camera layout, pricing and OEM/ODM options.
