A camera that sees heat, not light. It picks a person, an animal or a stalled vehicle out of total darkness, fog and oncoming headlight glare, hundreds of metres ahead, where a normal camera shows nothing.
Model C6
Every camera on this site reads visible light, which means it shares the eye’s weakness: a dark road, fog, or a wall of oncoming headlights, and the hazard is invisible until it is close. A thermal camera works on a different signal entirely. It reads the heat a body gives off, so a pedestrian in black on an unlit verge, a deer at the treeline, or a stalled car with its lights off all stand out clearly against the cooler background.
The C6 pairs an 8-to-14 micron thermal sensor with an AI box that finds those heat signatures and warns the driver. It flags a person beyond 200 metres and a vehicle beyond 400, far enough to give real reaction time at speed. The lens heats itself near freezing so it never ices over, and the IP69 sealing handles a pressure wash, while glare from headlights, which blinds a normal camera, simply does not register.
Heat signatures show a person, a cyclist or wildlife long before the headlights reach them, which is the gap where most night collisions happen. The AI box reads the thermal feed and raises a warning on a pedestrian ahead or an animal at the roadside, giving the driver time a visible-light camera cannot.
Fog, rain and snow scatter visible light but leave heat readable, and oncoming high beams that wash out a normal camera have no effect on a thermal sensor. The lens warms itself at around freezing so it stays clear, and the IP69 rating means a wash bay is no threat.

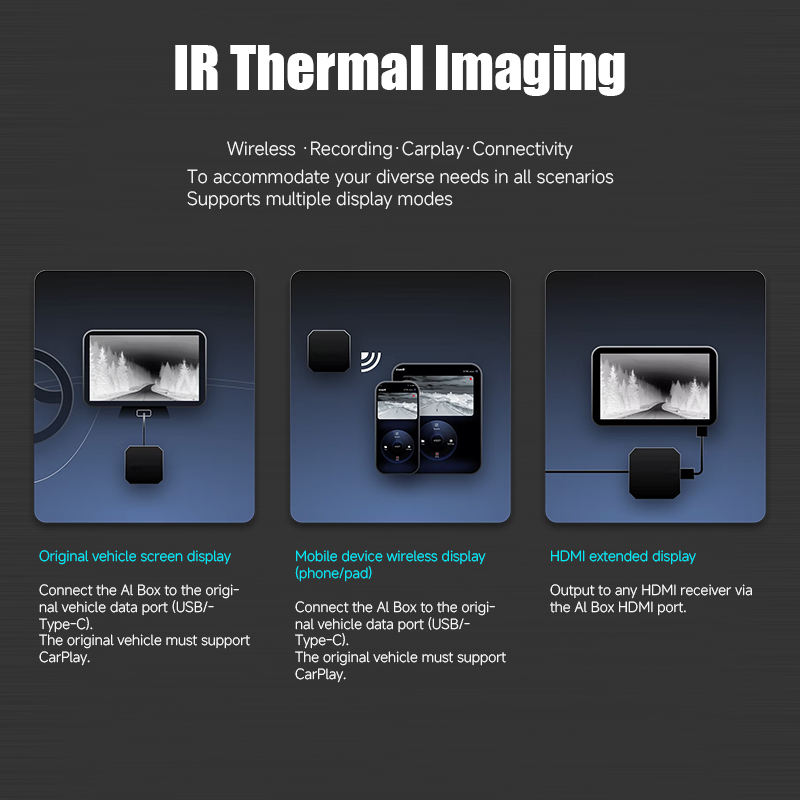

The AI box drives the view three ways: into a head unit over Apple CarPlay or Android Auto, wirelessly to a phone, or to an external monitor over HDMI. It is a quad-core unit with its own storage and a software-upgrade path, and it fits sedans, SUVs, trucks, RVs and vans without major changes to the vehicle.
| Thermal sensor | 384×288, 8-14 um |
| Focal length | 9.1 mm / 13.5 mm options |
| Field of view | 45×37° / 32×24° |
| Human detection | over 200 m (over 90 m wide FOV) |
| Vehicle detection | over 400 m (over 120 m wide FOV) |
| De-icing | lens heating near +2°C |
| Camera power | under 1W (under 5W with heating) |
| Camera sealing | IP69 |
| Camera size | 28 x 28 x 50 mm, under 150 g |
| AI box | quad-core 1.5GHz, 2GB / 16GB |
| Box outputs | USB-C, HDMI, dual M8, TF card |
| Display modes | CarPlay / Android Auto, phone mirror, HDMI |
| Working temp. | -20°C to +70°C |
| Brand / Origin | HOPE · Guangdong, China |
Where darkness and speed meet: long-haul trucks, coaches on night routes, rural and mountain roads, and any vehicle that drives where pedestrians and wildlife appear without warning.
Tell us the vehicles and the routes they run, and we will come back with a lens choice, configuration and pricing.
