Eight cameras, eight channels of 1080P, recording to a drive as large as 4TB. Built for the long bodies where four cameras leave gaps, articulated buses, drawbar trailers, fire appliances and container rigs that need eyes down their whole length.
Model HP-V26
Four channels cover most rigid trucks and single-deck buses. Past a certain length the gaps open back up: an articulated bus bends in the middle, a drawbar trailer adds a second body behind the first, a fire appliance carries equipment down both flanks. The HP-V26 runs eight cameras at once, so every side of a long vehicle reaches the screen at the same moment, and all eight channels record in 1080P.
Recording is sized for vehicles that stay out for days at a time. The host takes a hard drive up to 4TB and loops over the oldest footage, so a long-haul rig or a round-the-clock fire crew keeps weeks of video on board rather than hours. Each clip is stamped with GPS, so when something has to be pulled it ties to a place and a time, not just a file name.

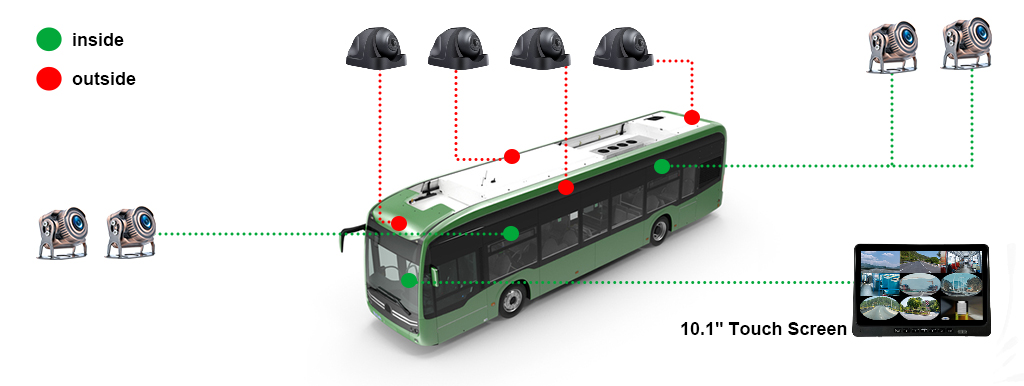

The cameras are 170-degree starlight units that hold a usable image after dark, in housings sealed against the weather and the wash bay. Spread front, rear and along both sides of a long body, the eight feeds land together on the 10.1-inch screen, and the driver moves between a single channel and the full split with a tap.
The safety algorithms are built in and can be tuned to the fleet: ADAS for lane departure and pedestrians ahead, DSM for fatigue, distraction and smoking in the cab, and BSD for anyone moving into the blind zone down the side. The warnings fire in the cab and log to the platform, so the office sees the pattern, not just the single event.

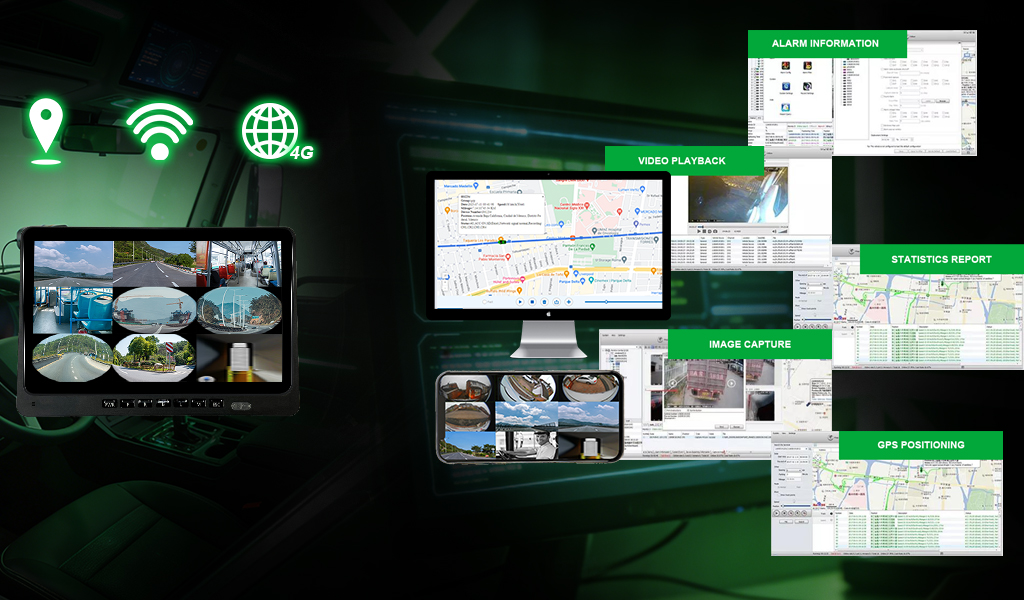

With the cameras placed for it, the system stitches a 360-degree surround view, switchable between a flat 2D overhead and a 3D model. The host carries its own 4G, WiFi and satellite positioning and reports to the CMSV6 platform, so a dispatcher gets live video, recorded playback, track history and alarms on a desktop or a phone without extra hardware.
| Channels | 8 |
| Camera resolution | 1080P, eight cameras |
| Display | 10.1″ 2.5D touch, 1024×600 |
| Camera angle | 170° wide angle |
| Night vision | Starlight, low-light colour |
| Waterproof | Host IP68, cameras IP69K |
| Video codec | H.264 / H.265 |
| Storage | HDD up to 4TB, loop recording |
| AI functions | ADAS, DSM, BSD (customisable) |
| View modes | 360° surround, 2D / 3D switchable |
| Positioning | GPS + BeiDou + GLONASS + AGPS |
| Network | 4G + WiFi |
| Platform | CMSV6 compatible, PC and mobile app |
| Power input | 9-36V wide voltage |
| Working temp. | -20°C to +70°C |
| Host dimensions | 385 × 210 × 115 mm |
| Host weight | 2000 g |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 1 year |
Eight channels earn their place on bodies that bend, tow, or carry gear down both sides. The host stays the same; the camera count and mounting follow the vehicle.
Tell us the vehicle type and how many units, and we will come back with a camera layout, pricing and OEM/ODM options.
