Four 1080P cameras and a compact 7-inch screen that shows all four at once. The no-frills way to put eyes on every side of a truck or trailer, sized to fit a cab that has no room for a 10-inch unit.
Model HP-H3

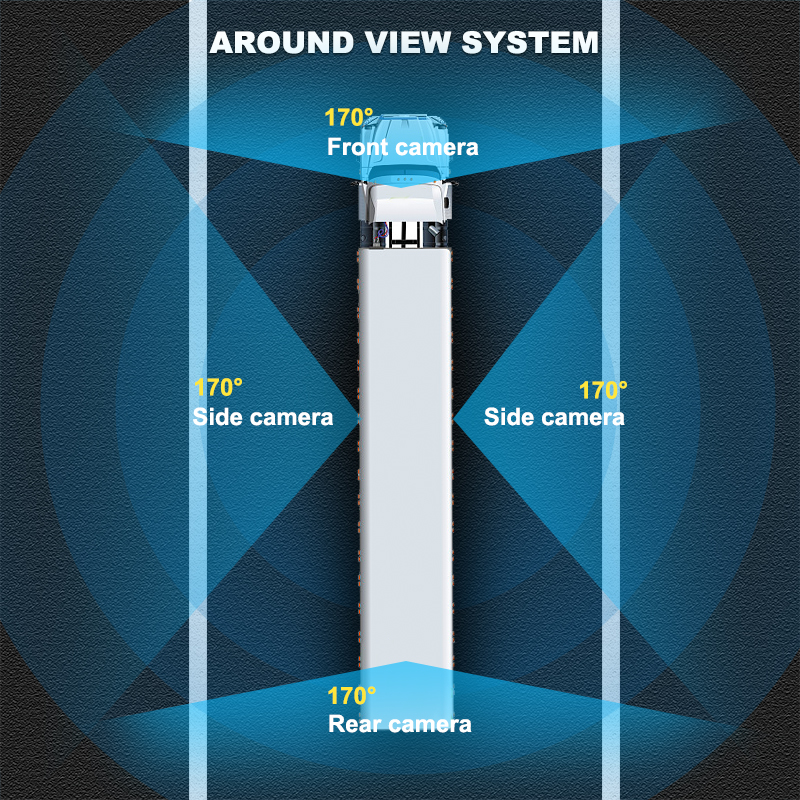

Not every cab has room for a 10-inch monitor, and not every job needs touch control or AI. The H3 is the compact answer: a 7-inch IPS screen that takes four 1080P cameras and shows them together in a quad split, so the driver sees front, rear and both sides at a glance. It records all four with loop recording and plays them back on the screen.
The cameras are 170-degree starlight units sealed by a potting process to a true IP68, so rain, dust and a wash bay leave them alone, and they hold a usable image after dark. At 312 grams the unit is light and simple to mount, with aviation connectors keeping the wired feed steady through vibration.

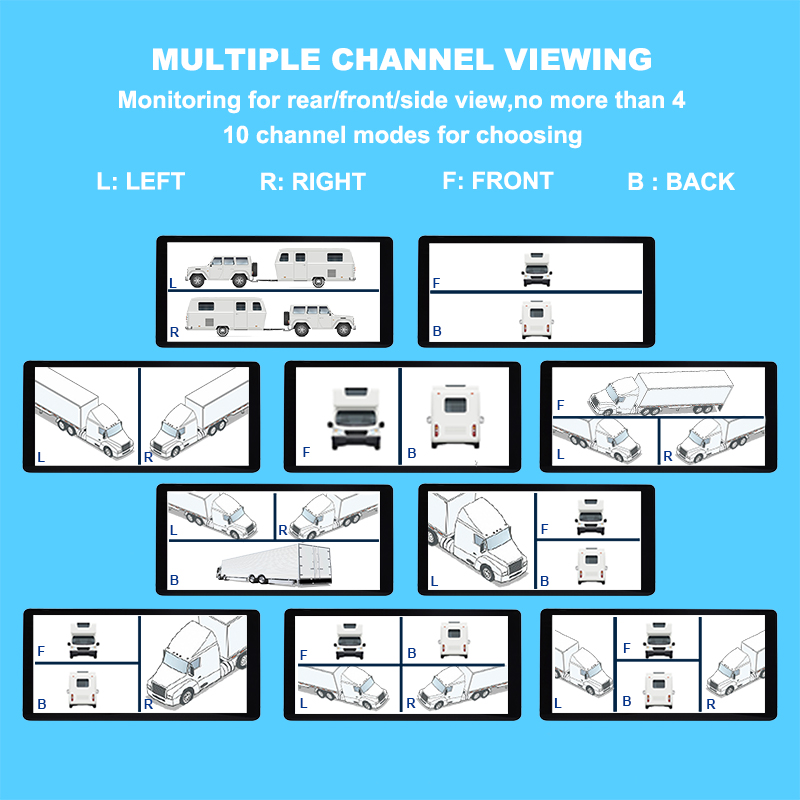

The quad split puts all four feeds on the screen together, which is what a driver needs at a tight turn or a busy yard where the danger can come from any side. Other split layouts and a single full-screen channel are a button away, and local playback pulls recent footage without a laptop.
A potting process fills the camera body rather than just gasketing it, for a true IP68 seal that survives weather and washing. The starlight sensors keep the picture usable from bright noon to a dark loading bay, so the system works the whole shift.
Parking mode turns the system into a guard while the vehicle is left, recording around the body so a knock or an incident in a yard is on the card. Loop recording onto a TF card up to 256GB keeps recent footage without the card filling.
| Channels | 4, quad split |
| Display | 7″ IPS, 1024×600 |
| Camera | 1080P starlight night vision, 170° |
| Waterproof | IP68 potted |
| Video | H.264, loop recording, playback |
| Storage | TF 16-256GB Class10 U1 |
| Operation | manual, remote control |
| Power | 9-36V wide voltage, 3W |
| Working temp. | -20°C to +70°C |
| Dimensions | 178 x 121 x 53 mm, 312 g |
| Connectors | aviation, wired |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 1 year |
Where a big touch unit will not fit or is not needed: trucks, buses, trailers and heavy-duty vehicles wanting simple four-camera coverage.
Tell us the vehicle type and how many units, and we will come back with a camera layout, pricing and OEM/ODM options.
