A portrait Android screen that stitches a 360 bird-view from small panoramic cameras and overlays a wireframe of the vehicle so nothing on the body blocks the view. Calibrated in about ten minutes, not a morning.
Model A9AR
A surround view is only useful if the body does not get in the way of it. The A9AR builds an AR around-view that renders the vehicle as a wireframe model, so the driver sees through the shell to the kerb, the wheels and anyone standing close, with mini panoramic cameras stitched into one seamless picture on the 10.36-inch portrait screen.
The part that wins over a fitter is the calibration. Where a traditional 360 takes a morning with a calibration cloth on the ground, this one aligns remotely in around ten minutes, which matters when a whole van fleet has to be done. It runs Android with 4G, WiFi and GPS for remote viewing and tracking, Bluetooth for calls and music, and loops recording to a card up to 256GB or a 500GB SSD.

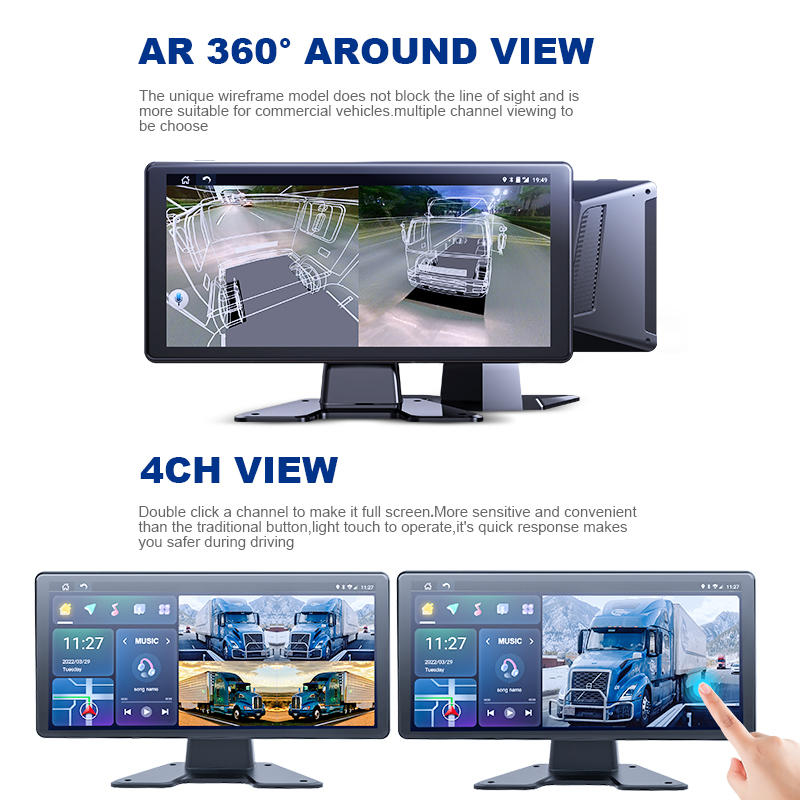

The AR view draws the vehicle as a wireframe inside the stitched surround image, so the body never hides what is beside it. The driver judges the kerb, a tight gap or a pedestrian by looking past a see-through model rather than around a solid blind spot.

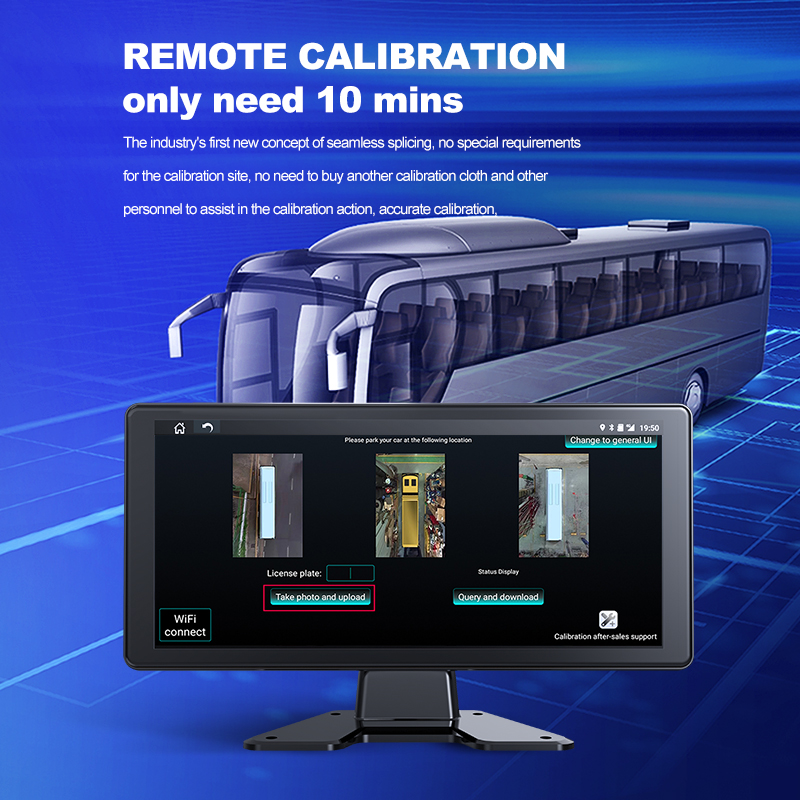

Traditional 360 calibration means laying out a patterned cloth and working around the vehicle, the better part of a morning per unit. This system aligns remotely in roughly ten minutes with no cloth, which is the difference between fitting one van and fitting a fleet.

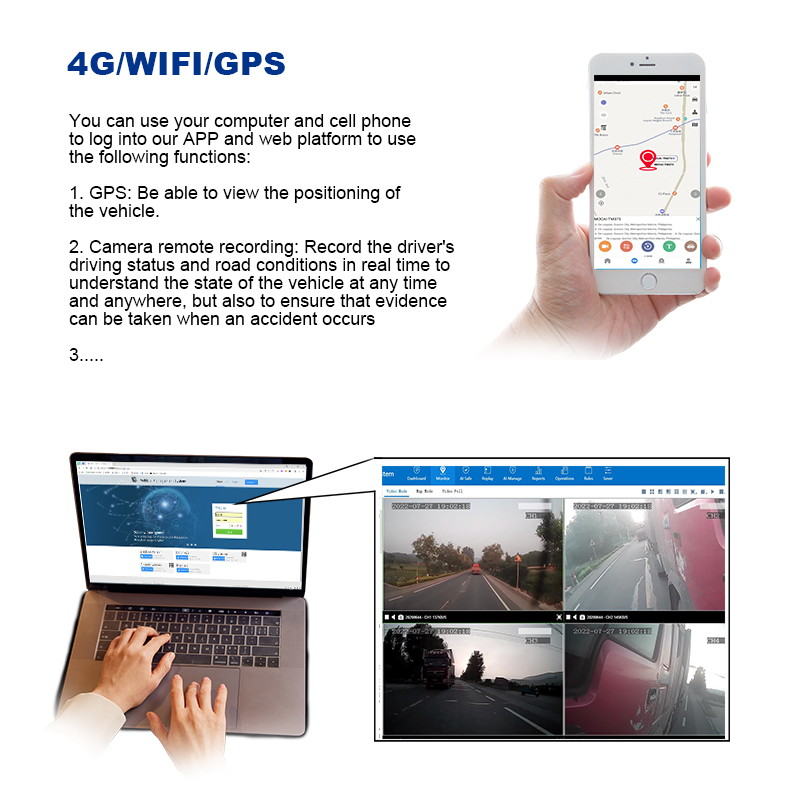

Android underneath means 4G, WiFi and GPS for remote viewing and tracking through the app and CMSV6, Bluetooth for hands-free calls and music, and USB media playback. The mini cameras are IP68 starlight units on aviation connectors, sealed for the weather.
| View | AR 360 around-view, wireframe model |
| System | Android 8.1, MTK6763 octa-core, 2+32GB |
| Display | 10.36″ 2.5D IPS portrait, 720×1600 |
| Camera | 720P starlight fisheye, IP68 |
| Calibration | remote, about 10 minutes, no cloth |
| Network | 4G full-netcom, WiFi, GPS/BeiDou/GLONASS |

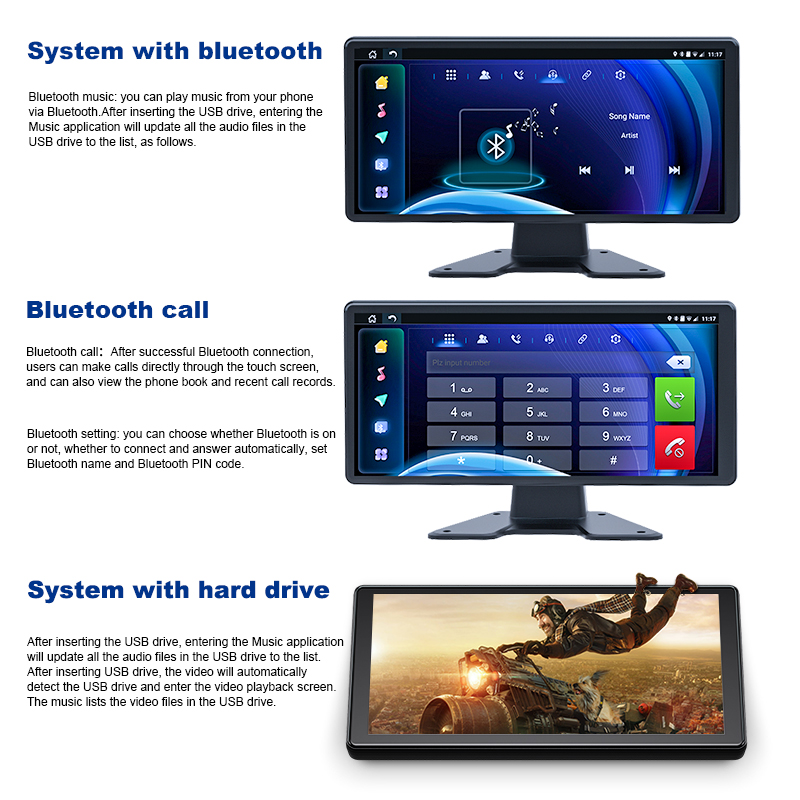

| Audio | Bluetooth calls + music, USB media |
| Platform | CMSV6, app remote |
| Storage | TF 16-256GB (SSD to 500GB), loop |
| Power | 9-36V wide voltage |
| Working temp. | -20°C to +70°C |
| Dimensions | 270 x 128 x 39 mm, 787 g |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 1 year |
Where a quick-to-fit 360 with a modern screen suits the vehicle: vans, light trucks, buses and commercial fleets standardising the install.
Tell us the vehicle type and how many units, and we will come back with a camera layout, pricing and OEM/ODM options.
