The top of the range: eight 1080P cameras, a stitched 360 bird-view, and ADAS, DSM and BSD all on one 10.1-inch touch screen, recording to a 4TB drive. Surround view, active safety and an eight-camera record in a single unit.
Model HP-V26pro
Most systems pick a job: eight channels for coverage, or a stitched 360 for the overhead view, or an AI safety layer. The V26pro does all three at once. Eight 1080P cameras feed both a multi-channel record and a stitched 360 bird-view, and on top of that run ADAS on the road, DSM on the driver and BSD around the body, with everything controlled from a 10.1-inch touch screen.
It is sized for the vehicles that justify it. The cameras are starlight units sealed to IP69K, recording in H.265 at up to 1080P 120fps onto a drive as large as 4TB, with switchable 2D and 3D surround views and nine viewing angles. 4G, WiFi and GPS report to the CMSV6 platform for live view, playback and tracking, so a flagship truck or coach has its surround view, its active safety and its fleet link in a single box rather than three.

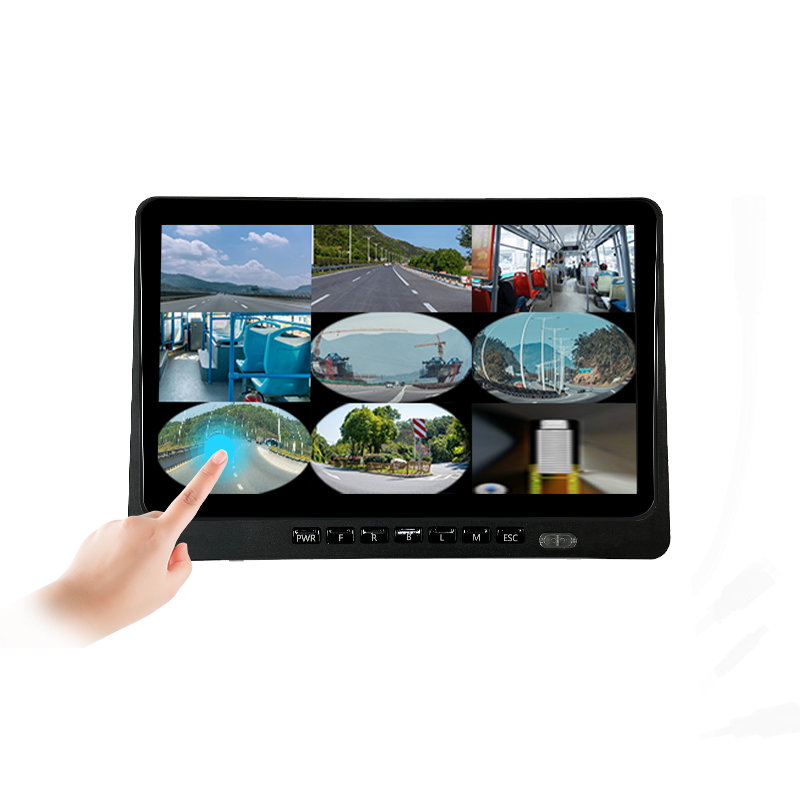

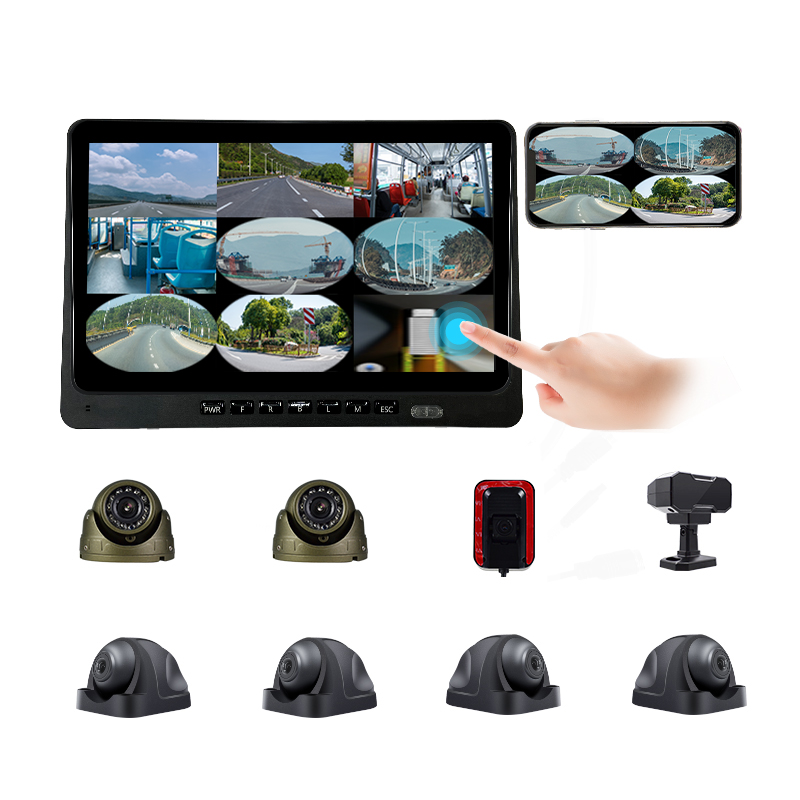

The eight feeds do double duty: each is recorded in full HD, and together they stitch into a seamless 360 bird-view that erases the blind spots around a long body. The driver switches between the overhead 2D, a 3D model, and nine individual angles from the touch screen.

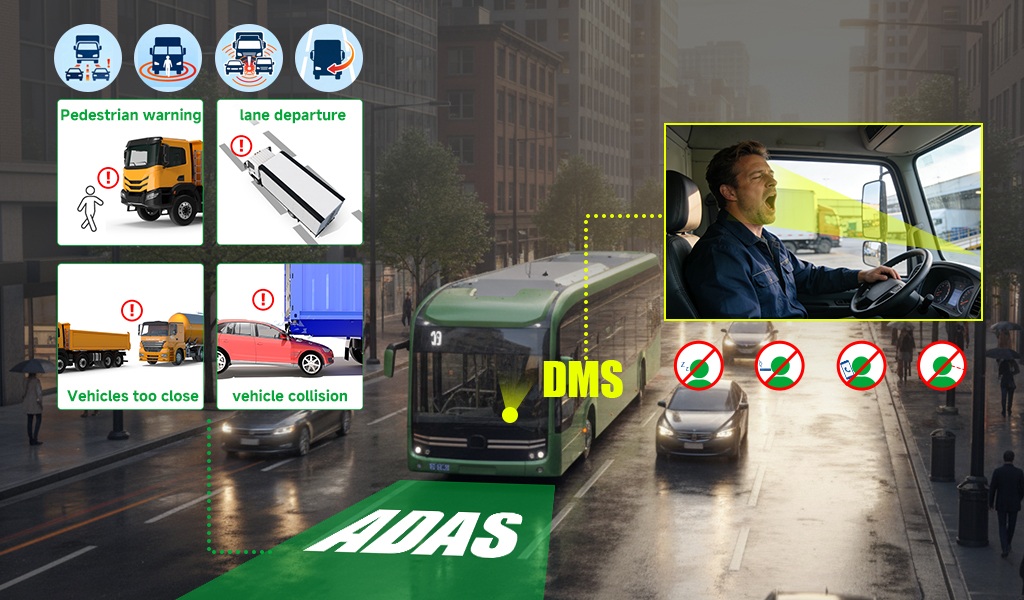

ADAS reads the lane ahead for departure and pedestrians, DSM watches the cab for fatigue, smoking and unsafe behaviour, and BSD covers the full 360 area for anyone moving into the danger zone. Three safety systems running on the same eight cameras that feed the surround view.
H.265 compression onto a 4TB drive keeps a flagship vehicle’s footage on board for the long haul, and 4G, WiFi and GPS feed the CMSV6 platform so a dispatcher gets live video, playback, location and speed on PC or phone. Loop recording and segmentation keep the storage tidy.
| Channels | 8 + stitched 360 panorama |
| Display | 10.1″ 2.5D IPS touch |
| Camera | 1080P AHD starlight, 170°, IP69K |
| Views | 360 2D / 3D, 9 switchable angles |
| AI | ADAS, DSM, BSD |
| Recording | H.264 / H.265, 1080P 120fps, loop |
| Storage | up to 4TB |
| Positioning | GPS + BeiDou + GLONASS + AGPS |
| Network | 4G, WiFi; CMSV6 platform |
| Operation | touch, voice (customisable) |
| Power | 12-36V, 3W |
| Working temp. | -20°C to +70°C |
| Host size | 385 x 210 x 115 mm, 2000 g |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 1 year |
Flagship trucks, coaches, fire appliances, long trailers and high-value commercial vehicles that need surround view, active safety and an eight-channel record together.
Tell us the vehicle type and how many units, and we will come back with a camera layout, pricing and OEM/ODM options.
