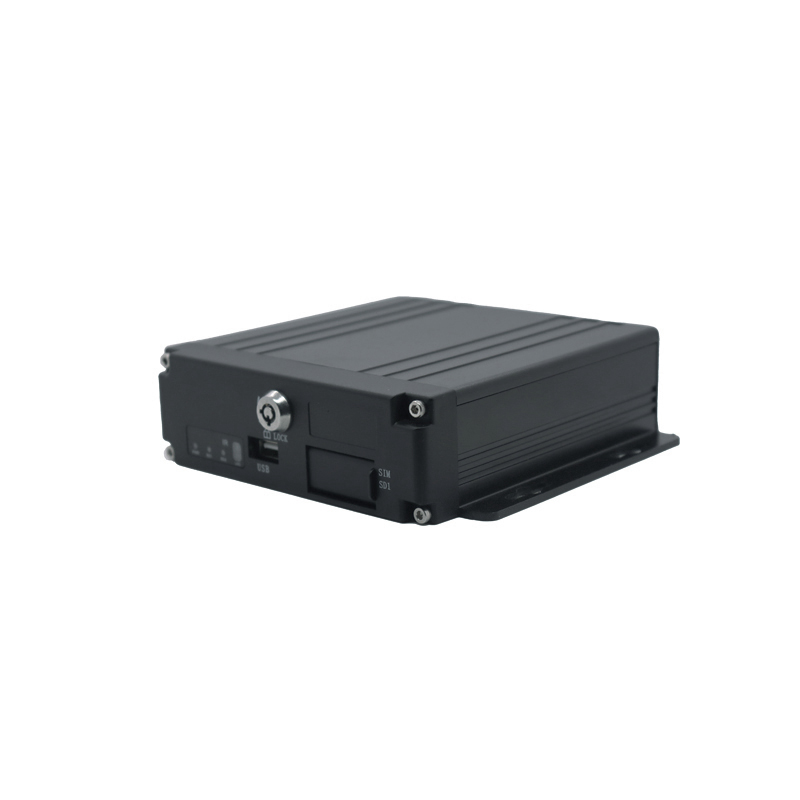

A small, sturdy 4-channel recorder for the everyday fleet. Records four cameras at 1080P to an SD card up to 512GB, with an accident lock, park mode and a footprint that hides almost anywhere in the cab.
Model HP-V9
Not every vehicle needs eight channels and a hard drive. For a van, a light truck or a bus that wants four cameras recorded reliably and pulled when needed, the HP-V9 is the right size. It records all four at 1080P to an SD card up to 512GB, loops over the oldest footage, and fits in a space the size of a paperback behind the dash.
H.264 and H.265 compression stretch that card across days rather than hours. It takes a mix of analog and AHD cameras, drives a 7, 9 or 10-inch monitor, and runs on 9 to 36V while feeding 12V back out to the cameras, so one box powers the whole set.

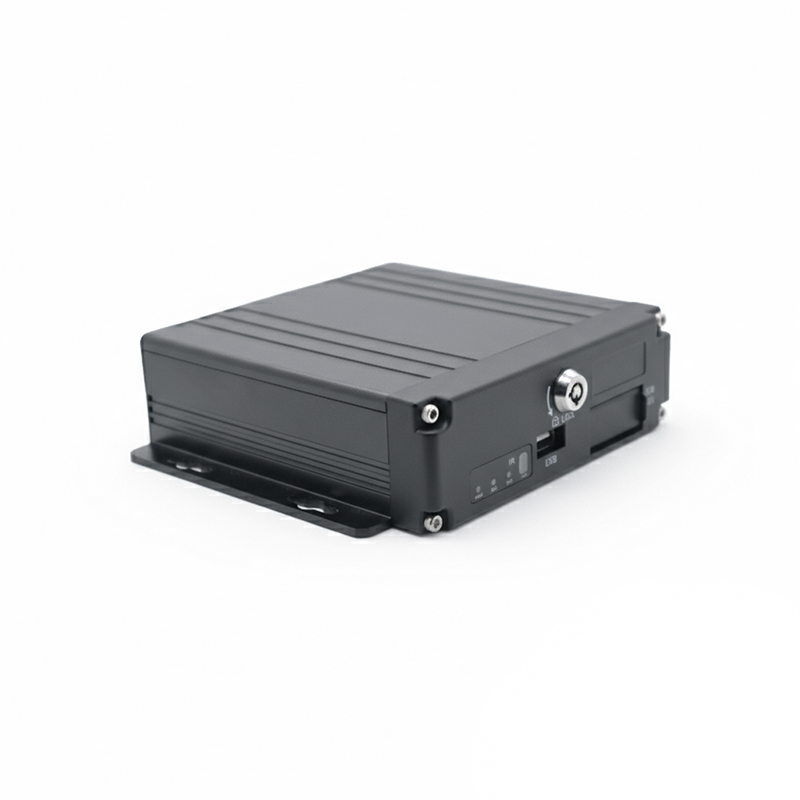

A G-sensor triggers an emergency lock around an impact so the critical footage is held back from the recording loop, and watermark technology keeps it from being quietly altered. For a dispute or a claim, that locked, verifiable clip is the whole point of fitting the box.

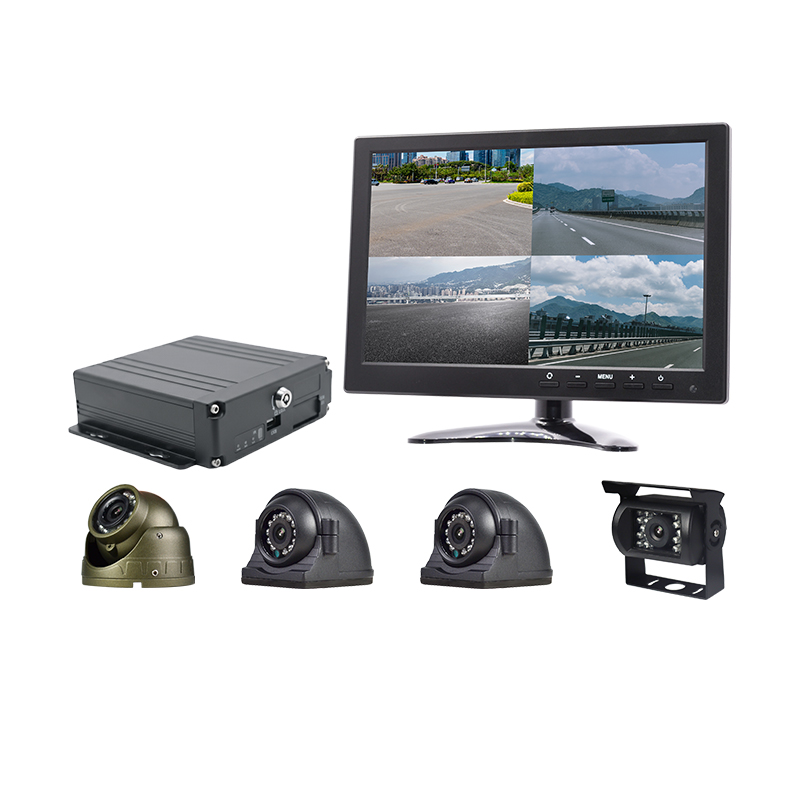

The cameras run past 170 degrees to cut the blind spots around the body, and they are IP68-sealed for rain, dust and a wash bay. Infrared, waterproof and fisheye options are available so each mounting point gets the right lens rather than a compromise.

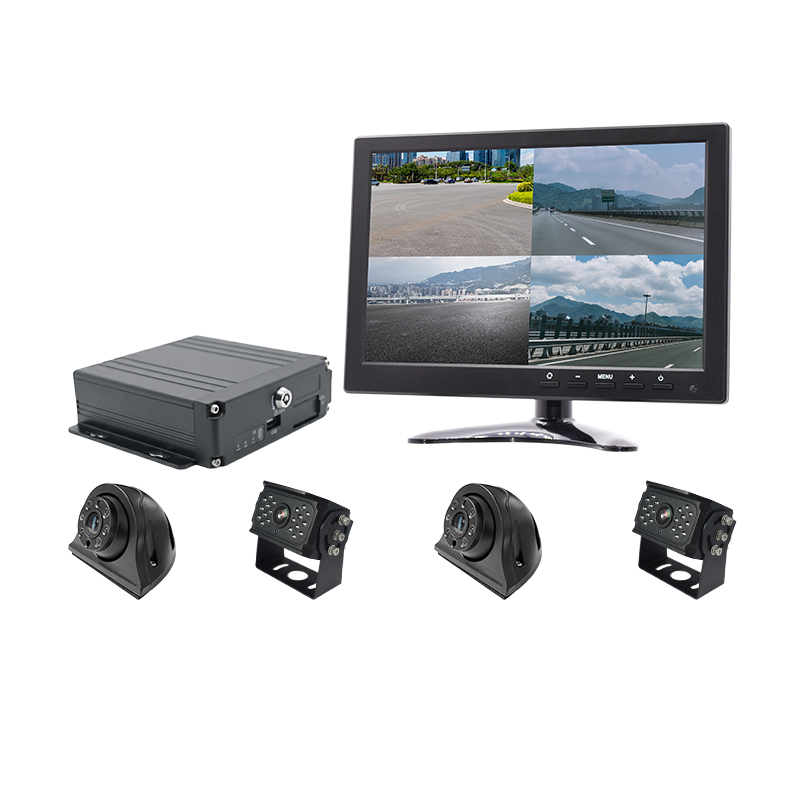

The mini chassis tucks out of sight, and triggers for speed, turn, brake and reverse mark the events on the timeline. Optional 4G, WiFi and GPS bring app control and live tracking, and the unit upgrades locally or over the air. OEM and ODM builds ship on a short turnaround.
| Channels | 4, record and playback |
| Monitor | 7″ / 9″ / 10″ IPS |
| Resolution | 1080P / 720P / D1 / HD1 / CIF |
| Compression | H.264 / H.265 |
| Camera input | 2 analog + 2 AHD mixed |
| Storage | 1x SD card up to 512GB, loop |
| Integrity | accident lock, watermark |
| Triggers | speed, turn, brake, reverse |
| Connectivity | GPS / 4G / WiFi (optional), app, ADAS |
| Power | 9-36V in, 4-channel 12V camera out |
| Camera waterproof | IP68; IR / fisheye options |
| Working temp. | -20°C to +70°C |
| Dimensions | 140 x 154 x 41.5 mm, 550 g |
| Compliance | RoHS, FCC, CE |
| Brand / Origin | HOPE · Guangdong, China |
| Warranty | 12 months |
Where four channels and an SD card are enough: vans, light trucks, buses, tourist coaches, school buses and emergency vehicles.
Tell us the vehicle type and how many units, and we will come back with a configuration, pricing and OEM/ODM options.
